Sand two grits in a single pass with a 252 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.

The 252 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor.

All Laguna Tools woodworking machinery carry a 2-year warranty. Must register machine within 30 days of purchase.

[TABS]

Features

INTELLISANDTechnology: Automatically adjusts conveyor speed based on load

Prevents gouging, damaging or burning stock
Provides consistent finish even with varying grain pattern and density
Greatly increases abrasive planing and dimensioning speed

Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no flex in conveyor, guaranteeing flatness to less than .010 across the width of the sander
Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools
Self-cooling drum prevents overheating and extends abrasive life
Tension rollers are adjustable in height and hold down pressure, eliminating snipe
Excellent dust extraction as dust cover is formed to shape of drum
Metal, not plastic, is formed to maximize air flow and dust extraction
Heavy-duty cast iron construction for strength, rigidity and reduced vibration
Mobile base allows for stand and machine to be to moved easily

Specs

Sanding Max. Width: 25″
Sanding Min. Length: 3-1/2″
Sanding Max. Thickness: 6″
Sanding Min. Thickness: 1/32″
Dimensions (H x W x D): 43 x 46 x 31
Drum (Extruded Aluminum): 5 x 25
Drum Speed: 1,740 RPM
Dust Hood (Steel Hood, Hinged At Back): (2) 4 Vacuum Ports
Min CFM: 1,000 Recommended
Ball Bearing (1): 4 sealed and permanently lubricated
Conveyor Motor: 100 in. -lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM
Drive Motor (TEFC): 5hp, 1 Phase
Power Requirements: 208-230V, 60Hz; 1 Phase, 30 Amp Service; 3 Phase 20 Amp Service
Shipping Weight: 475 lbs.
Shipping Dimensions (L x W x H): 50 x 44-1/2 x 44-1/2

Video

[/TABS]

Machinery

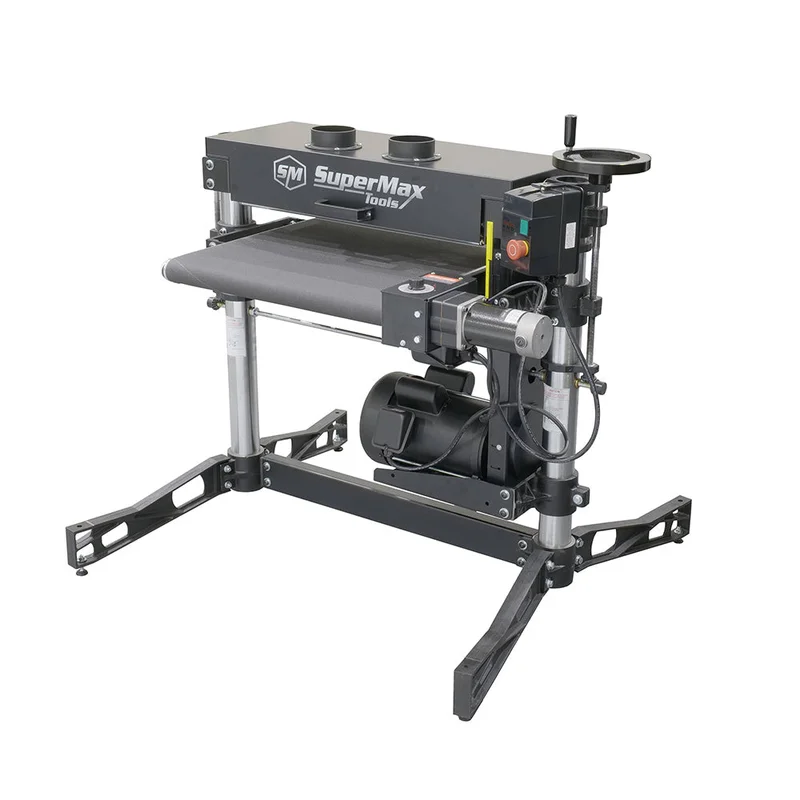

SuperMax 252 Double Drum Sander
